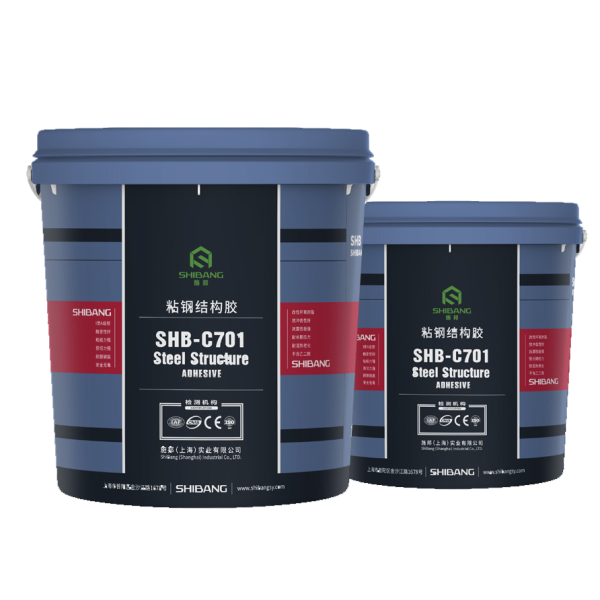

Adhesive steel reinforcement products
SHB-C701
SHB-C701 adhesive steel structural adhesive is A, B two-component modified epoxy structural adhesive
- Product Model: SHB-C701
- Specification: 20g/group
- Mix ratio: A:B=3:1
- Torage period: 12 months
Product Introduction
SHB-C701 adhesive steel structural adhesive is A, B two-component modified epoxy structural adhesive, mainly suitable for all kinds of reinforcement and renovation projects in the adhesive steel construction.
Product features
· Strong bonding and shearing force, suitable for steel-steel and steel-concrete bonding.
· Modified epoxy resin, free of styrene, safe and non-toxic.
· Good thixotropy, no flow in construction.
· Resistant to aging, acid, alkali and salt, fatigue and long-term stress.
· Strong impact resistance, seismic performance, good toughness.
· Loose curing conditions, large proportion range, long operating time, narrowing the hardening process.
· Easy to operate, 5~6 kg per square meter of glue.
Performance parameters
|
Inspection
item |
Qualification
standard |
||
|
Colloidal Property |
Tensile
strength (MPa) |
≥30
|
|
|
Tensile
E-modulus (MPa) |
≥3200 |
||
|
Elongation (%) |
≥1.2 |
||
|
Bending
strength(MPa) |
≥45,without
fragmented damage |
||
|
Pressure
strength (MPa) |
≥65
|
||
|
Bonding Ability |
Standard
value of steel-steel tensile shear strength (MPa) |
Standard
value (23±2) ℃, (50±5) %RH |
≥15 |
|
Average
(60±2) ℃, 10min) |
≥17 |
||
|
Average (-45±2)
℃, 30min) |
≥17 |
||
|
Steel-steel
tensile strength (MPa) |
≥33 |
||
|
Steel-steel T
impact stripping length (MPa) |
≤25 |
||
|
Steel-C45
pulling bonding strength (MPa) |
≥2.5,damaged
as concrete cohesive failure |
||
|
Thermal
deformation temperature (℃) |
≥65 |
||
|
Non-volatile
matter content (%) |
≥99 |
||
Performance Index
|
|
Inspection item |
Qualification index |
|
Environmental resistance |
Wet and heat ageing resistance ability (%) |
Compared with the short-term results at room temperature,
the decrease rate of shear strength ：≤ 12 |
|
Heat aging resistance (%) |
Compared with the short-term results at same
temperature 10min, the decrease rate of shear strength : ≤ 5 |
|
|
Freezing and thawing resistance ability (%) |
Compared with room temperature, short-term results,
the shear strength decrease rate is not greater than : ≤ 5 |
|
|
Stress resistance ability |
Resistance to fatigue stress |
After
2×106 times continuous sine wave fatigue loads,specimen does not
destory |
|
Long-term stress resistance |
The steel to steel tensile shear specimens does not
destroy,and creep deformation value is less than 0.4mm |
|
|
Dielectric resistance |
Salt spray resistance (%) |
Strength reduction rate compared with the control
group: ≤ 5%, and no cracks or degumming |
|
Alkaline medium resistance (%) |
The strength does not decrease compared with the
control group, and the concrete is damaged, and the appearance must not have
cracks, peeling or foaming |
|
|
Resistance to acid media (%) |
The concrete is damaged, and the appearance must not
be cracked or degummed |
|
|
Remarks: Judgment basis: GB50728-2011 "Technical
Specification for Safety Evaluation of Engineering Structural Reinforcement
Materials" (Table 4.2.2-2) (Table 4.8.1) (Table 4.2.2-4) (Table 4.2.2-5) |
||
Curing time
|
Ambient
Temperature(℃) |
Time
of Operate(min) |
Cure
Time(h) |
|
-5 |
60 |
72 |
|
0 |
50 |
72 |
|
10 |
40 |
72 |
|
20 |
30 |
48 |
|
30 |
30 |
48 |
|
Note: When the ambient temperature is lower than -5℃, the curing time can be extended according to the above table. |
||
Application scope
· Paste steel plates on the exterior of concrete members in the reinforcement and renovation project.
· Self-adhesion and mutual adhesion of various building materials in civil engineering.

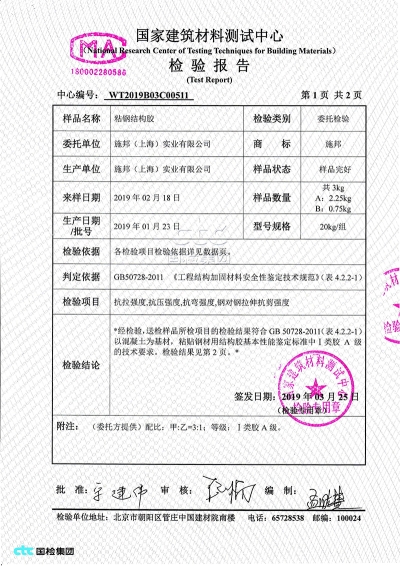

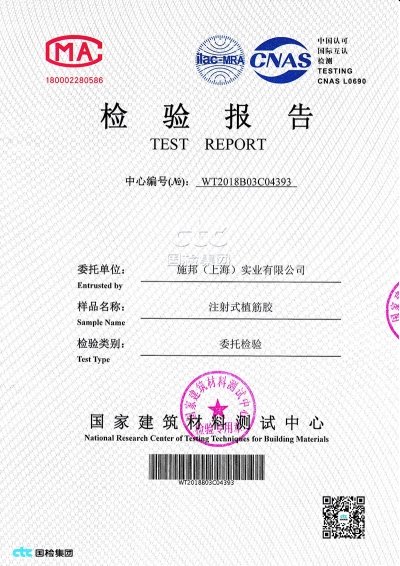

Testing report
Construction video images
·Substrate treatment: Polish the bonding surface to remove the surface layer and loose layer until the new surface is exposed and dust is removed, and the dirt is cleaned with acetone.
·Steel plate treatment: Polish the bonding surface of the steel plate until it appears metallic luster, and drill holes according to the parts specified in the design drawings.
·Configure glue: Weigh SHB-C701 adhesive steel structure in accordance with the required proportion and fully mix and stir.
·Apply glue: Apply the surface of the steel plate and the substrate to be bonded, the thickness is 1~3mm, and make the glue thick in the middle and thin around the sides.
·Paste steel plate: Paste the coated steel plate in the specified part according to the design drawing, and immediately use chemical anchor bolt or expansion bolt to fix and pressurize.
·Curing: Do not move the glue before curing, and other operations can be carried out after curing.
Notes
·SHB-C701 adhesive steel structural adhesive shall be well ventilated during preparation and construction, and the adhesive surface shall be clean and free of oil stains.
· The curing temperature shall not be lower than 5℃, the curing time shall not be less than 3 days when the ambient temperature is 20-25℃, and the curing time shall not be less than 7 days when the average temperature is 10℃.
· Gloves, masks, goggles, safety hats and other protective equipment must be provided during construction.
· If accidentally on the skin or clothing, can be washed with acetone and plenty of water rinse.
· If ingested or spilled into eyes, seek medical attention immediately.
· Glue for ultra-low temperature or high temperature environment, can be specially produced.
