Curtain wall anchoring products

Product Introduction

Made of high-quality carbon steel or stainless steel, combined with chemicals (composed of vinyl resin, quartz sand particles, curing agents, etc.), suitable for non-cracking concrete, can be customized according to customer needs.


Product Model:

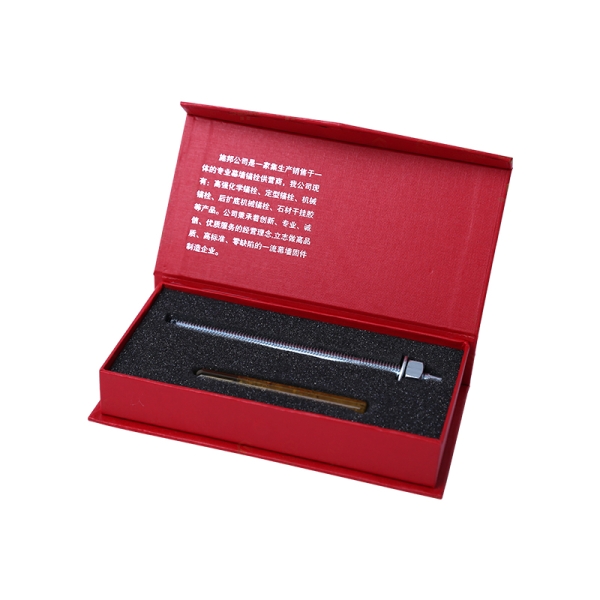

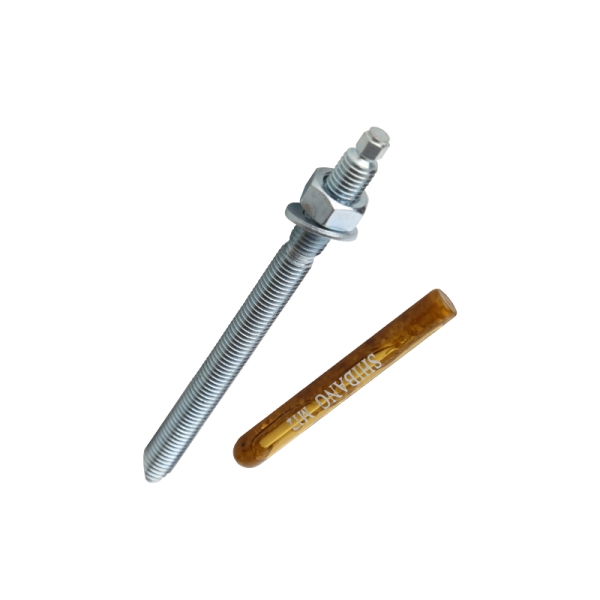

SHB-B606 High strength chemical anchor bolt



specification

M8/10/12/16/20/24/30

Material

stainless steel 304/316.

Grade 5.8 /8.8 galvanized carbon steel.

Product features

· Glass tube closed packaging for visual measurement of tube quality, glass crushed as fine aggregate.

· Acid and alkali resistance, heat resistance, fire resistance, low temperature sensitivity.

· No expansion extrusion stress on the substrate, suitable for heavy loads and various vibration loads.

· The installation spacing and margin must be small.

· Fast installation, rapid curing, does not affect the construction progress.

· The construction temperature range is wide.


Performance parameters

SHB- High-Strength Chemical Anchor Screw Installation Data

The steel bar diameter(mm)

Pore size(mm)

Pore depth(mm)

Maximum anchoring thickness

Minimum substrate thickness

Mounting torque

Influence coefficient K of Hef on Vrd and cp

Failure of concrete vertebrae



Concrete cracking failure

Total length of screw

Critical spacing

Critical margin

Minimum spacing

Minimum margin

Critical spacing

Critical margin

M8×110



10



80



15



120



12



2.0



240



120



48



48



240



120



110



M10×130



12



90



20.5



130



20



2.0



270



135



60



60



270



135



130



M12×160



14



110



25



160



40



2.0



330



165



72



72



330



165



160



M16×190



18



125



33



175



60



2.0



375



190



96



96



375



188



190



M20×260



22



170



65



220



100



2.0



510



255



120



120

510



255



260



M24×300



28



210



65



270



160



2.0



630



315



144



144

630



315



300



M30×38

35

280

66.5

340

240

2.0



840

420

180

180

840

420

380







SHB- High-strength chemical anchor screw technical parameters

Technical parameter

M8×110

Standard value/design value

M10×130

Standard value/design value

M12×160

Standard value/design value

M16×190

Standard value/design value

M20×260

Standard value/design value

M24×300

Standard value/design value

M30×380

Standard value/design value

Tensile parameters of non-cracking concrete

5.8

14.4/9.4

19.7/12.8

32.5/21.1

67.4/44.2

101.8/67.0

143.1/94.4

231.0/153

8.8

22.9/15.1

31.2/20.5

51.6/33.8

69.5/45.6

109.9/60.3

150.6/82.8

231.0/153

304

14.4/5.0

19.7/6.7

32.5/11.1

67.4/23.3

101.8/35.3

143.149.6

231.0/153

316

20.0/10.5

27.3/14.3

45.3/15.6

69.5/38.0

109.9/60.3

150.6/82.8

/

Shear parameters of non-cracking concrete

5.8

5.6/4.7

7.7/6.4

12.7/10.5

26.5/22.1

40.2/33.5

57.7/47.2

98.1/81.8

8.8

9.0/7.5

12.3/10.3

20.3/16.9

42.4/35.3

64.3/53.6

90.6/75.5

157.0/130.8

304

3.0/2.5

4.0/3.4

6.7/5.6

13.9/11.6

21.1/17.6

29.7/24.7

51.5/42.9

316

6.3/5.3

8.6/7.2

14.3/11.9

29.8/24.8

45.2/37.7

63.7/53.1

/

5.8

5.6/4.7

7.7/6.4

12.7/10.5

26.5/22.1

40.2/33.5

57.7/47.2

165.4/91.1

Tensile parameters of cracked concrete

5.8

14.4/9.4

19.7/12.8

32.5/21.1

50.0/27.2

78.8/43.1

108.0/59.2

165.4/91.1

8.8

22.9/15.1

31.2/20.5

41.1/22.4

50.0/27.2

78.8/43.1

108.0/59.2

165.4/91.1

304

14.4/5.0

19.7/6.7

32.5/11.1

50.0/17.2

78.8/28.4

108.0/41.3

/

316

20.0/10.5

27.3/14.3

41.1/14.1

50.0/27.2

78.8/43.1

108.0/59.2

98.1/81.8



Shear parameters of cracked concrete

5.8

5.6/4.7

7.7/6.4

12.7/10.5

26.5/22.1

40.2/33.5

57.7/47.2

157.0/130.8

8.8

9.0/7.5

12.3/10.3

20.3/16.9

42.4/35.3

64.3/53.6

90.6/75.5

51.5/42.9

304

3.0/2.5

4.0/3.4

6.7/5.6

13.9/11.6

21.1/17.6

29.7/24.7

231.0/153

316

6.3/5.3

8.6/7.2

14.3/11.9

29.8/24.8

45.2/37.7

63.7/53.1

/

Curing time

Ambient Temperature()

Time of Operate(min)

Cure Time(min)

-5

20

72

0

10

48

10

8

48

20

5

24

30

3

24

Note: When the ambient temperature is lower than -5, the curing time can be extended according to the above table.



Application scope

· Post-planting of newly built concrete without embedded steel bars.

· It is suitable for the planting root of screw and steel bar in the substrate in the reinforcement and renovation project.

· Various equipment, pipeline installation, curtain wall bracket fixing.

· Bonding and fixing of wood components, plastic components, metal components and steel structures.

· Suitable for reinforcement of subway, highway, bridge, tunnel, nuclear power water conservancy renovation and expansion projects.

· Fixed billboards, tunnel pipelines, overhead road soundproofing panels and guardrail.

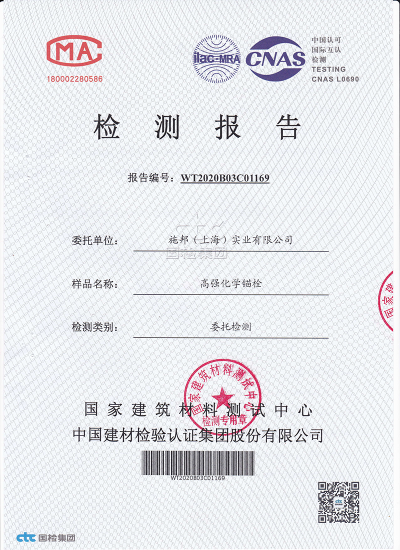

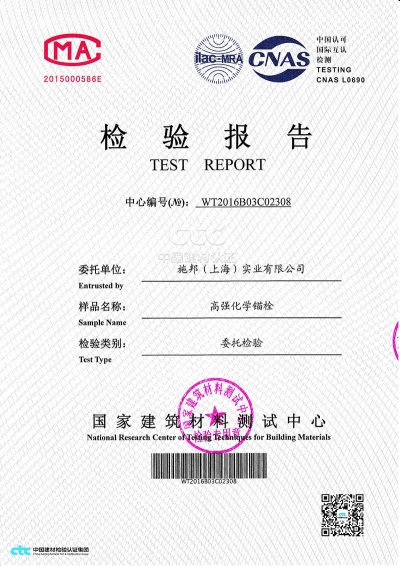

Testing report

Construction video images

① Base material drilling.

② Clean the inside of the hole.

③ Put the chemical anchor reagent tube into the hole.

④ Slowly screw in the chemical anchor bolt.

⑤ Wait for the colloid to cure.

⑥ After curing, load can be carried out.


Notes

·Table installation data unit is mm, technical specifications unit kN.

·The data in the table is based on C20/C25 base concrete. If the grade of the base material changes, the influence coefficient of concrete strength should be added according to the specification in accordance with the requirements of the technical department and the design drawings.

·Material in the table: 304 material is A2-70 stainless steel; 316 is made of A4-70 stainless steel.

·The table design load includes the material safety factor.

·Tabular data are applicable for: correct installation, infinity, no spacing effects, minimum substrate thickness.

·For the products not listed in the table, please consult the Technical Department of Shibang (Shanghai) Industrial Co., LTD

·Ccr.1.5hef: The critical edge distance of the anchor bolt when the ideal cone of concrete is damaged by tension (the critical distance from the center of the anchor bolt to the concrete boundary)

·Scr.N ≥ 3.0hef: the critical distance of anchors (the critical center distance between anchors and anchors) when the ideal cone of concrete is damaged by tension.

·Minimum margin of anchor bolt Cmin≥ 0.8hef: The minimum margin of anchor bolt without concrete splitting damage caused by installation.

·Minimum anchor bolt spacing Cmin ≥ 1.0hef: The minimum anchor bolt spacing that does not cause concrete splitting damage due to installation.

·hef: effective anchoring depth.
