Carbon fiber reinforced product

Product Introduction

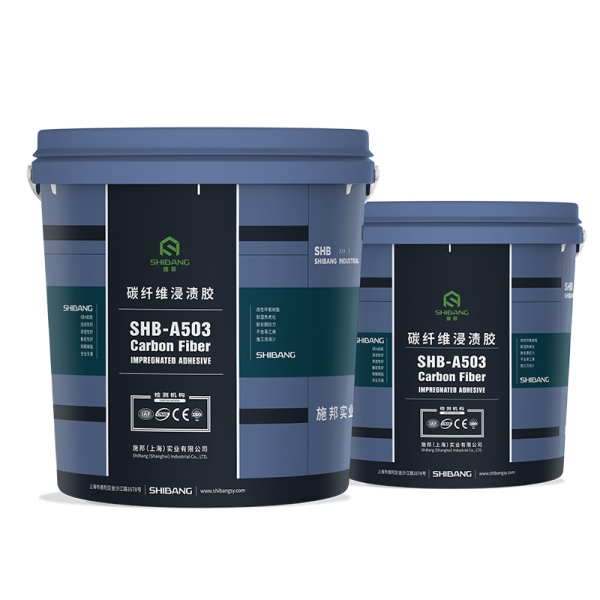

SHB-A503 carbon fiber impregnating adhesive is A, B two-component epoxy adhesive, mainly used for bonding carbon fiber cloth and other sheets, widely used in reinforcement construction. The product can be customized to produce no-base coating impregnating adhesive, so that it has a no-base coating effect, which can eliminate the use of carbon fiber substrate adhesive in construction.


Product features

· Low viscosity bisphenol A modified epoxy resin, no styrene, safe and non-toxic.

· Moderate viscosity, composite material formed with carbon fiber sheet has strong mechanical properties.

· Good infiltration and permeability, good thixotropic performance, good suspension makes the colloid flow less during vertical construction.

· Good aging resistance and medium (acid, alkali, salt) resistance.

· Room temperature curing, wide adhesive ratio, can adjust the adhesive ratio according to the temperature.

· No volatile solvent, non-toxic and so on.


Performance parameters

Inspection item

Qualification standard

Colloidal Property

Tensile strength (MPa)

≥38



Tensile E-modulus (MPa)

≥2400

Elongation (%)

≥1.5

Bending strength(MPa)

≥50,without fragmented damage

Pressure strength (MPa)

≥70



Bonding Ability

Standard value of steel-steel tensile shear strength (MPa)

Standard value (23±2) ℃, (50±5) %RH

≥14

Average (60±2) ℃, 10min)

≥16

Average (-45±2) ℃, 30min)

≥16

Steel-steel tensile strength  (MPa)

≥40

Steel-steel T impact stripping length (MPa)

≤20

Steel-C45 pulling bonding strength (MPa)

≥2.5,damaged as concrete cohesive failure

Thermal deformation temperature (℃)

≥65

Non-volatile matter content (%)

≥99



Performance Index



Inspection item

Qualification index

Environmental resistance

Wet and heat ageing resistance ability (%)

Compared with the short-term results at room temperature, the decrease rate of shear strength ≤ 12

Heat aging resistance (%)

Compared with the short-term results at same temperature 10min, the decrease rate of shear strength : ≤ 5

Freezing and thawing resistance ability (%)

Compared with room temperature, short-term results, the shear strength decrease rate is not greater than : ≤ 5

Stress resistance ability

Resistance to fatigue stress

After 2×106 times continuous sine wave fatigue loads,specimen does not destory

Long-term stress resistance

The steel to steel tensile shear specimens does not destroy,and creep deformation value is less than 0.4mm

Dielectric resistance

Salt spray resistance (%)

Strength reduction rate compared with the control group: ≤ 5%, and no cracks or degumming

Alkaline medium resistance (%)

The strength does not decrease compared with the control group, and the concrete is damaged, and the appearance must not have cracks, peeling or foaming

Resistance to acid media (%)

The concrete is damaged, and the appearance must not be cracked or degummed

Remarks: Judgment basis: GB50728-2011 "Technical Specification for Safety Evaluation of Engineering Structural Reinforcement Materials" (Table 4.2.2-2) (Table 4.8.1) (Table 4.2.2-4) (Table 4.2.2-5)

Curing time

Ambient Temperature()

Time of Operate(min)

Cure Time(h)

-5

60

72

0

50

72

10

40

72

20

30

48

30

30

48

Note: When the ambient temperature is lower than -5, the curing time can be extended according to the above table.

Application scope

· This product is a high-performance epoxy fiber binder, which can be used for concrete, steel, ceramics, stone, wood and other substrates.

· Penetration bond with fiber fabrics such as carbon fiber, glass fiber, basalt fiber, aramid fiber, etc.

· Mainly used for reinforcing and strengthening building structures.

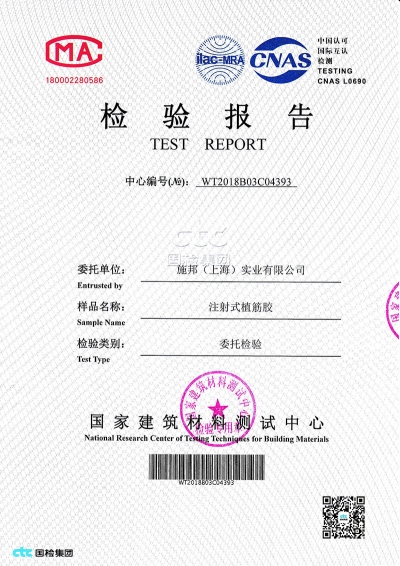

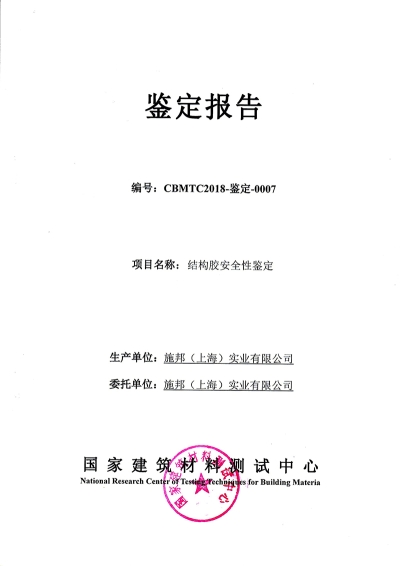

Testing report

Construction video images

① Substrate treatment

② Configure carbon fiber impregnating glue

③ Cutting carbon fiber cloth

④ Applying carbon fiber impregnating glue

⑤ Pasting carbon fiber cloth

⑥ Applying adhesive again

⑦ Curing and protecting


Notes

· The glue should be well ventilated during preparation and construction, and the adhesive surface should be clean and free of oil.

· Under normal circumstances, the amount of glue used per square meter of this product is about 0.6 to 0.8 kg, and the amount of glue used during construction should not be too little or too much.

· The curing temperature shall not be lower than 5℃, the curing time shall not be less than 3 days when the ambient temperature is 20-25℃, and the curing time shall not be less than 7 days when the average temperature is 10℃.

· Gloves, masks, goggles, safety hats and other protective equipment must be provided during construction.

· If accidentally on the skin or clothing, can be washed with acetone and plenty of water rinse.

· If ingested or spilled into eyes, seek medical attention immediately.


Get a quote

// Product

Related Products.

SHB-A502

SHB-A502

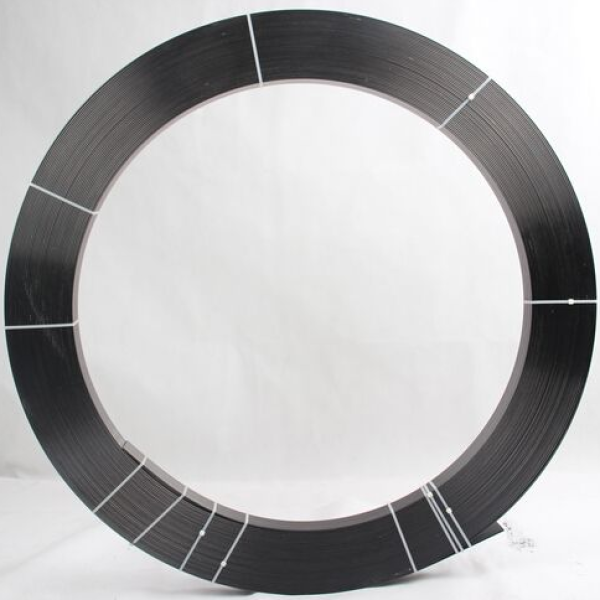

SHB-A502 Carbon fiber plate

SHB-A503

SHB-A503

SHB-A503 Carbon fiber impregnating adhesive

SHB-A501

SHB-A501

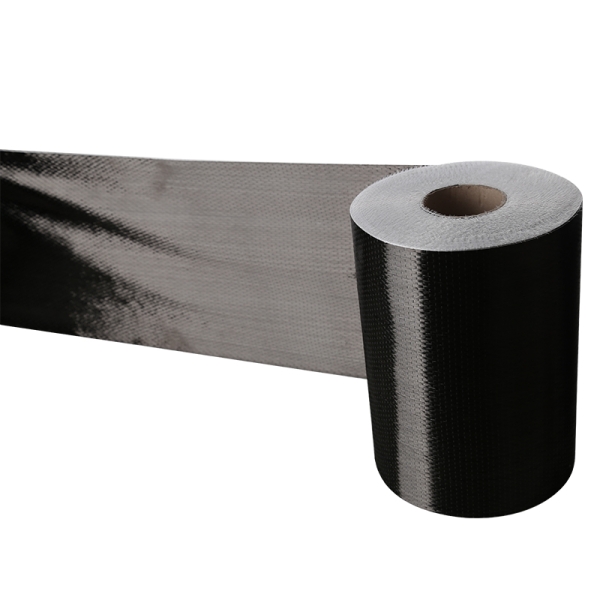

SHB-A501 carbon fiber fabric is a unidirectional woven carbo

SHB-A506

SHB-A506

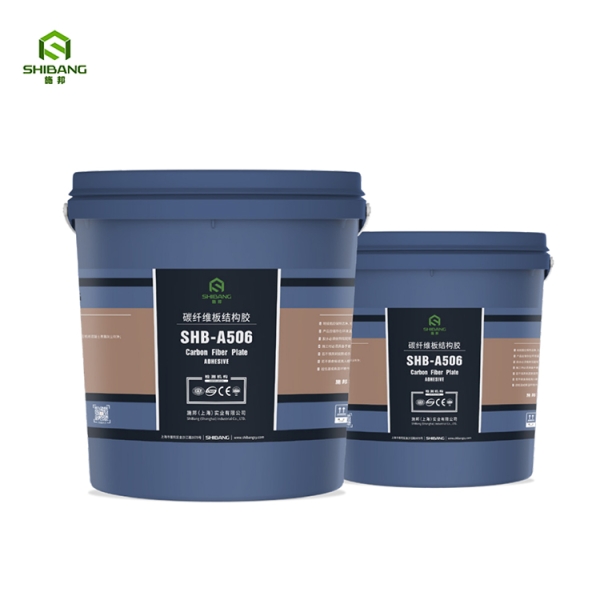

SHB-A506 carbon fiber fiber plate adhesive is a cyclooxy res
